Tederic Launches New Series of Injection Moulding Machines

PMEUK is pleased to announce that Tederic Machinery Co., a world-renowned plastic injection moulding solutions provider, has launched its NEO series of injection moulding machines, which includes all-electric, hybrid, multi-material and two-platen models.

The NEO series has been jointly created by the Tederic team and a group of top designers from around the world, bringing together the accumulated Tederic engineering experience with leading European design knowhow. The combination of leading industrial styling, advanced electro-mechanical design, and leading brand componentry has resulted in a machine with excellent performance and a premium user experience.

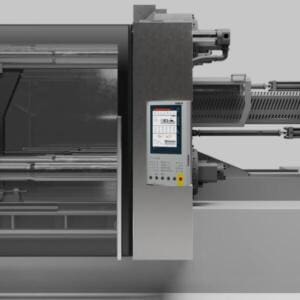

All machines feature an advanced Keba control, with the option of 12-inch touch, 15-inch multi-touch and 21-inch enhanced multi-touch configurations. The controllers offer support for OPC, UA and Modbus data protocols and feature free programming capabilities to accommodate a variety of special process requirements.

A new generation of servo-pumps power the system with ultra-high response speeds (max. pressure can be reached in 28ms) can save 30% to 80% energy consumption when compared to traditional hydraulic systems.

The machine guarding has been completely redesigned for safe, practical use and to conform to local safety standards where the machines are sold.



Available in China immediately, the NEO series will be rolled out to export markets over the next six months.

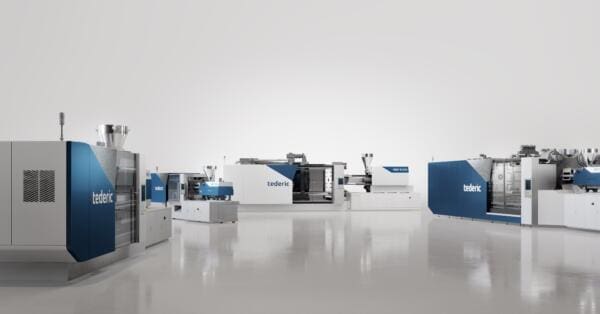

Six new product lines have been introduced including:

  1. NEO · T
  2. NEO · E
  3. NEO · Ec
  4. NEO · H
  5. NEO · Mv
  6. NEO · Ms

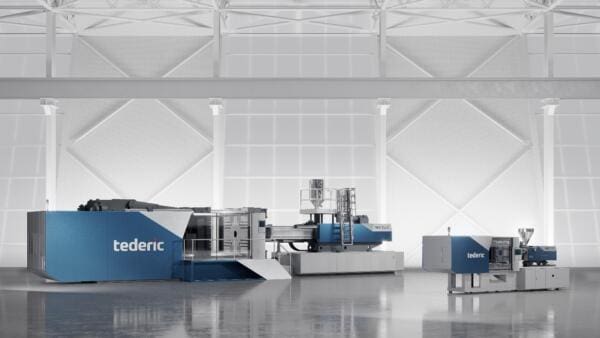

NEO · T – A series of servo-toggle machines in the range 90t-4000t. New features include larger tie-bar spacing, enhanced mould height and a special clamp-braking system to improve mould positioning accuracy.

NEO · E – All-electric machines in the range 55t-460t. Its features include larger tie-bar spacing, NSK linear bearing for platen guidance, a standard 15-inch touch screen and the latest generation motors and drives with DC bus technology.  Injection speeds up to 500mm/sec are available, with pressure accuracy reportedly down to less than 1 bar. These machines are ideal for precision technical, medical and high volume thin-wall applications.

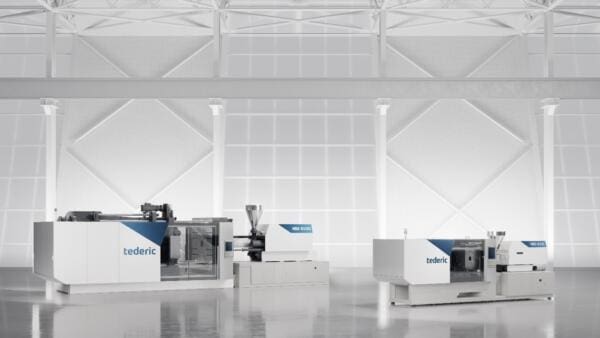

NEO · Ec – Hybrid-electric machines range in size from 168t-1088t, with injection, screw rotation and clamping all electro-mechanically driven. There is an integrated power pack with a servo-pump to power the ejectors, carriage and core pulls. The carriage has twin hydraulic pistons, and the moving platen features linear bearing guidance. A 15-inch touch screen is standard, and the machine uses the latest generation motors and drives with DC bus technology. The NEO · Ec is available with injection speeds up to 250mm/sec. These machines will appeal to custom moulders who desire the accuracy of the electric solution, coupled with the flexibility of the integrated hydraulics.

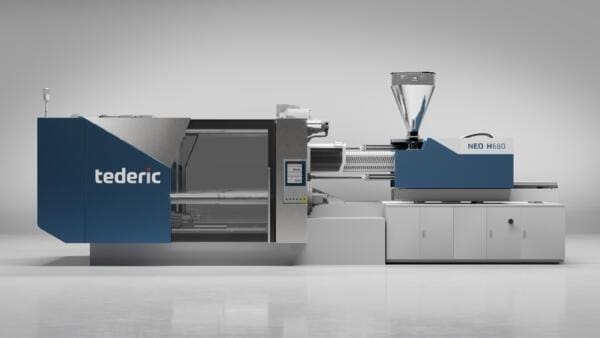

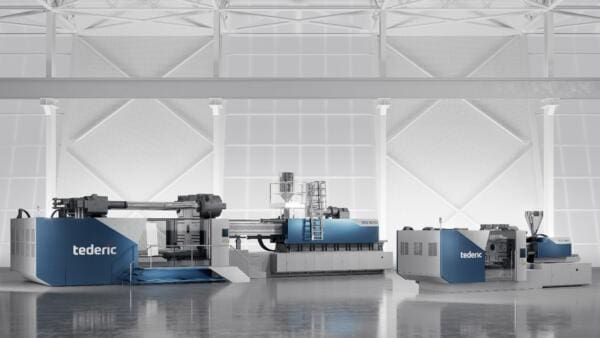

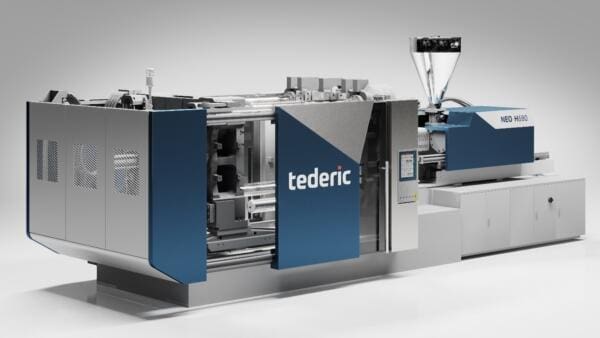

NEO · H – Two-platen servo-pump machines are initially available in the 680t-2700t range, with that eventually extending through to 4000t. Several new models with larger tie-bar spacing, enhanced mould daylight, and a special clamp-braking system will improve mould positioning accuracy. A 15-inch touch screen is standard, and the machine uses the latest generation motors and drives with DC bus technology. Available options include electric screw drive, tie-bar extraction, and extended daylight with mould side-loading.

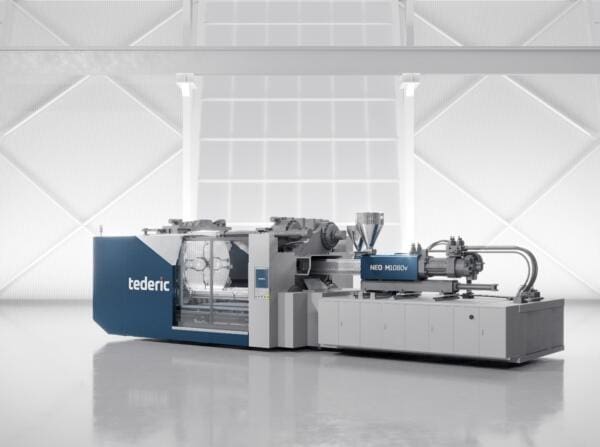

NEO · Mv – A range of multi-material machines that are equipped with the Spinsure-V™ vertical rotary platen integrated into the moving platen casting. These rotary platens are servo-driven and offer a full range of utility connection options. Wide-platen toggle machines in the range 170t-810t and two-platen machines in the range 880t-1920t can be configured with up to five independently controlled injection units. These units can be positioned parallel, angled, perpendicular and vertical to the main machine axis. Both hydraulic and electric injection units are available.

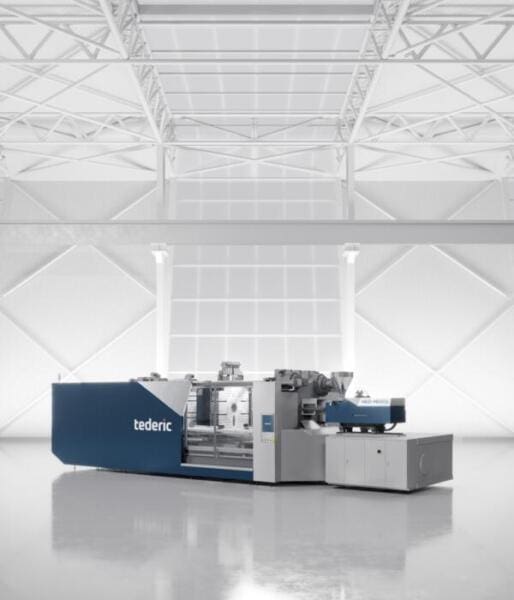

NEO · Ms – A special range of multi-material machines in the range 880t-1920t. These also are equipped with the Spinsure-H horizontal rotary table positioned between the fixed and moving platens and used to rotate the centre section of a stack mould. The machine has two opposing injection units as standard, the secondary unit riding behind the moving platen. Additional injection units can be added as required. The rotary table movement and positioning are independently controlled, allowing for a range of mould designs and complex applications.

For more information, visit https://www.pmeuk.com/.
