Telsonic Revolutionises Ultrasonic Metal Welding with New Launch

Following the recent launch of Telsonic’s Telso®Terminal TT7 in the latter part of 2021, the system is more than living up to expectations and already revolutionising ultrasonic metal welding applications in a number of areas.

Key amongst these are applications within the fast-growing electromobility sector, where TT7 is addressing the increasing demand for the highest levels of quality and process control in cable assembly, terminal assembly, and battery production applications.

The flexibility and capability inherent within this latest generation system is clearly demonstrated through the diversity of the applications where the system has been adopted to date. Telso®Terminal TT7 has been proven to be the optimum solution for a wide range of metal cable cross-sections, configurations, and connector types, as illustrated in this small selection of customer examples.

PowerWheel® Overcomes Multiple Weld Challenges

High Power Lock Box terminals (SQ4) are manufactured from C15100 copper alloy and left free from plating around the weld area. In this particular application, cables with cross-sections of between 35mm² and 50mm² were required to have SQ4 terminals attached. The width of the weld area for the 50mm² variant was increased from 13mm to 18mm, to allow a weld width of 15mm, and also accommodate a clamping width of 1.5mm on each side of the terminal when using a 15mm sonotrode.

Telsonic Ultrasonics: High Power Lock Box terminal - SQ4 - joined to an EV cable
(High Power Lock Box terminal – SQ4 – joined to an EV cable)

The height of the connector, which was approximately 17mm, posed a particular challenge for sonotrode spacing when considering linear and conventional ultrasonic welding processes. Using these options, it is not physically possible to construct a linear sonotrode that can reach over the 17mm height and still efficiently achieve the required frequency of 20kHz. The solution in this application came in the form of Telsonic’s PowerWheel® torsional welding system. Available as an integral part of the TT7 system, PowerWheel® technology was able to achieve the termination height and produce a high-quality weld between both the 35mm² and 50mm² cable variants and the SQ4 terminal. The orientation of the sonotrode allows for not only sufficient clearance but also the required weld energy to deliver a quality weld without affecting the finer strands in the transition area or the connector itself, thanks to the gentler vibrations.

PowerWheel® also offers advantages when welding a larger cable in a smaller area. This was clearly demonstrated in the application where a ProEV™ cable, manufactured by Promark Electronics, a division of ECI, was joined to a silver-plated Rosenberger connector.

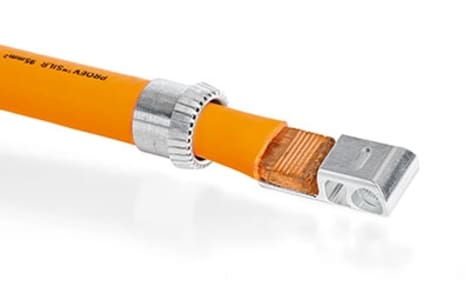

Telsonic: ProEV™ cable joined to a silver-plated Rosenberger connector
(ProEV™ cable joined to a silver-plated Rosenberger connector)

In instances such as this, the height of the weld nugget is greater than in a normal scenario. Since the amplitude in torsional welding is at its highest in the middle of the weld nugget, more energy can be applied to compensate for the greater height whilst once again limiting the potential for damage to the strands within the transition area of ​​the weld seam. Telsonic’s PowerWheel® torsional welding system was the perfect solution for this application, achieving a good quality weld between the 35mm² flexible ProEV™ cable and the 10mm wide connector.

In a further example of welding within a smaller space, a ProEV™ cable was joined to a Stäubli PerforMore compact two-pin connector, the combination being used for electric propulsion systems. With 95mm² and 3,000 flexible, fine strands of 0.2mm diameter, this particular cable is used to terminate the Stäubli connector, with limited space for the required weld width. The available weld seam width of 18mm, as opposed to 22mm, once again brought with it the challenge of offering a welding solution in a smaller space, where the required weld seam compression must be achieved without damaging the finer strands in the weld seam transition area.

Telsonic: ProEV™ cable joined to a Stäubli PerforMore compact two-pin connector
(ProEV™ cable joined to a Stäubli PerforMore compact two-pin connector)

Once again, PowerWheel ® torsional welding technology within the Telso®Terminal TT7 system successfully achieved the high-quality weld required between the 95mm² flexible ProEV™ cable and the 18mm wide PerforMore connector.

In each of the application examples here, quality control variables such as. the final height of the weld, the welding time, and the power were easily monitored and controlled in each cycle to ensure perfect results every time.

As can be seen in these examples, the Telso®Terminal TT7, combined with the latest version of Telsonic’s proven PowerWheel® welding technology, ensures maximum reliability and optimum process control for welding metal cable cross-sections up to 200mm2. Additional benefits include the ability to change tools in under 5 minutes, thanks to the TT7’s new quick-change system. The Telso®Terminal TT7 also features standardised interfaces for digital networking and ease of integration into production systems.

Telsonic UK offers a comprehensive range of ultrasonic modules and systems for various plastic welding, cutting, sealing, cut’n’seal, food cutting, metal welding, packaging, sieving, and cleaning applications within a wide range of industries.

Visit to find out more or get in touch with the team using the below contact details.
