Bunting Reduce Cost by 90% for Plastic Magnet Assembly

Bunting’s engineering design team was asked by a customer to reduce the cost of a magnet assembly.

The magnet assembly formed part of a magnetic coupling with a specific torque ratio.  However, due to the manufacturing process, the cost of assembly was high.

The Magnet Assembly Development Project

The major challenge was that the magnet assembly was going to be coated in plastic using an injection moulding process.  The existing process involved the over-moulding of a magnetised assembly.  This was proving the be difficult and costly.  Handling strong magnetised materials was difficult in the moulding process.

Additionally, the magnetised assembly was being exposed to excessive heat.  This would reduce the magnetic performance.

The Bunting engineering design team developed a magnetic assembly that could be magnetised after the injection moulding process.  Two unique radially orientated sintered neodymium ring magnets were bonded together to make a long enough magnet to produce the required torque and would then create a 6-pole radial magnetic field when magnetised.

The ‘plastic’ component was then magnetised producing the strongest magnetic field possible for a magnet of this shape and size in an outer 6 pole configuration.

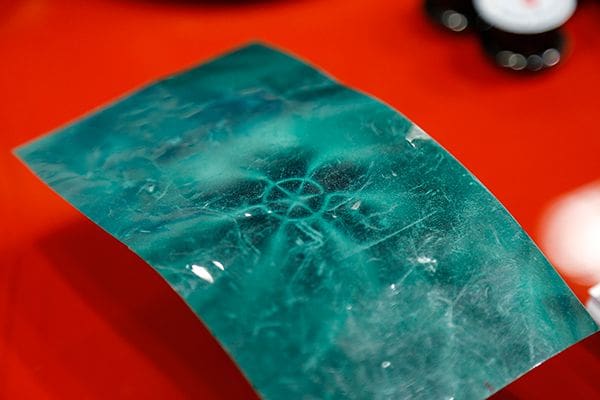

Bunting Magnetic Field Sheet
This has been achieved without any compromise in the operational characteristics and torque ratio as the Neo grade was increased to compensate for the increased air gap and the loss of the coupling back iron.

New Design Benefits

The manufacturing cost has been reduced by 90%.  This has been achieved without any compromise in the operational characteristics and torque ratio.

Tooling costs, which were over £10,000, have also been significantly reduced.

Bunting Magnetics specialises in designing magnetic solutions.  They also sell a wide range of magnets and magnetic components online via their eMagnets UK brand.

For further information on bespoke magnet assemblies or magnet designs, please contact the team on the below.
