Fatigue

One of the ways that plastic parts can fail is by cyclic loading and unloading. This type of failure is called fatigue.

The loading and unloading can occur at regular intervals at the same applied stress or randomly and at different stresses.  In terms of testing the former is easier to produce.

The main features of a cyclic fatigue test are summarised for a sine wave profile as above.  Other profiles could be sawtooth or square wave, but the definitions are the same.

The loading in the image above is always positive or tensile-tensile which tends to be the most common loading situation, although compression-compression or tensile compression loading situations are also possible.

When setting up a fatigue test it is important to know the maximum and minimum stress required which defines the R ratio (which can be negative in a tensile-compression test) and the frequency of the test i.e. the number of cycles per second (Hertz).  To avoid heating effects the frequency is usually kept below 10Hz for thermoplastics.

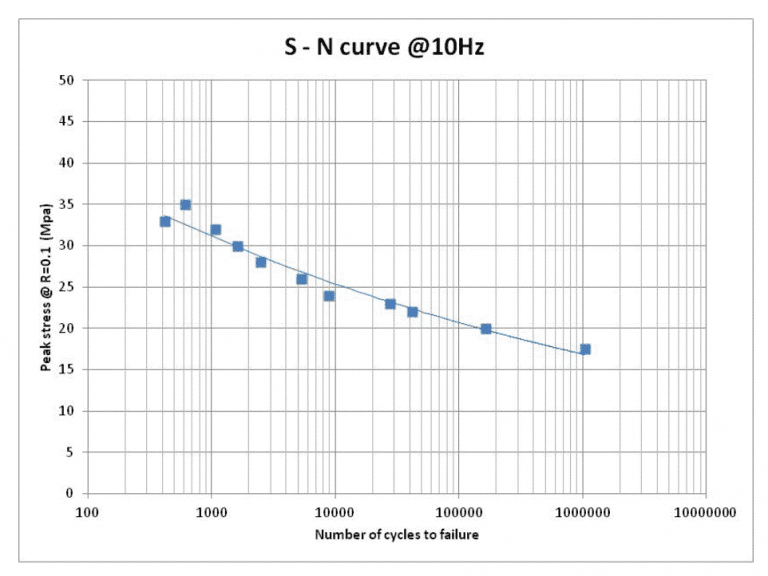

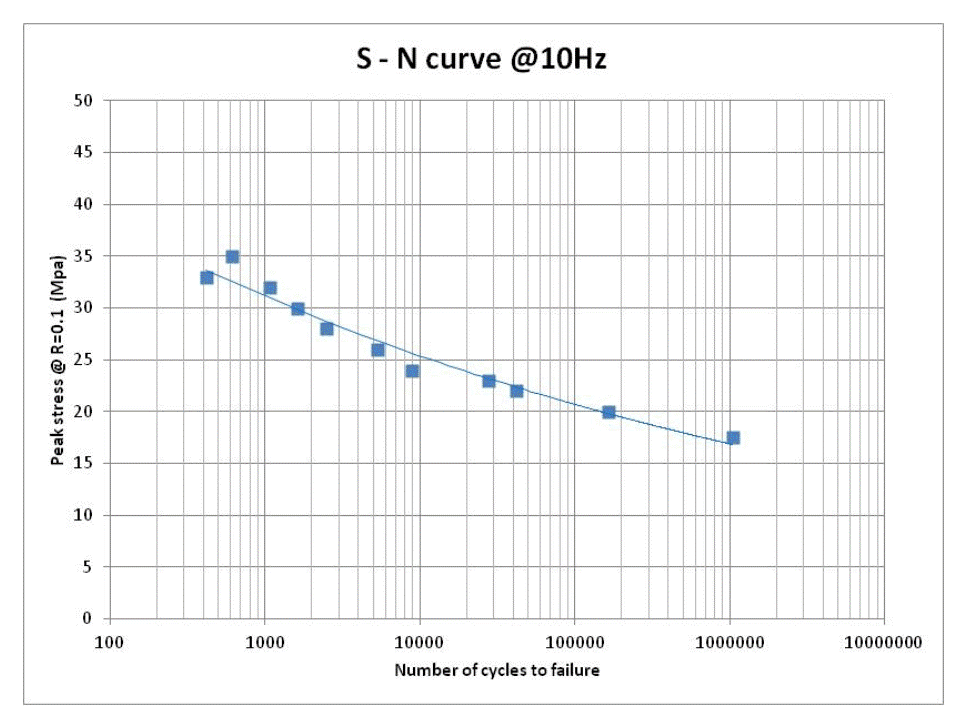

The most common requirement for fatigue tests is to determine the number of cycles a sample can survive at a given loading condition before it fails.  This can be expressed in various ways, one being to plot stress- number of cycle curve or an S-Ncurve, where S is often the maximum stress and R is kept constant.  This shows data for a glass filled polymer tested at 100oC.

impact solutions fatigue chartThe current fatigue testing facility at Impact Solutions consists of a United Test electronic dynamic testing machine with an oven installed for high-temperature work.  The specification for the system is;

  • Maximum dynamic load:- ± 3kN
  • Actuator maximum stroke:- ±100mm
  • Frequency:- 0.1 to 10Hz
  • Waveform:- Sinusoidal, square wave, sawtooth
  • Temperature:-Ambient to 150oC
