GOM Launches Mobile 3D Scanner with Inspect Software

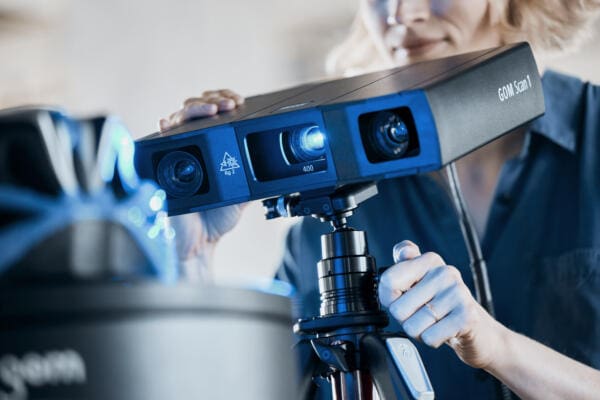

GOM has released its GOM Scan 1 sensor, a mobile 3D scanner that digitally captures objects and achieves precise 3D meshes for applications such as 3D printing, reverse engineering and dimensional inspection.

The GOM Scan 1 features a compact shape filled with advanced technologies. From GOM’s fringe projection technology to the stereo camera principle, this sensor is built to deliver 3D data with high precision. The lightweight system is a specialist for simple and quick measurements of small and medium-sized parts – even in confined spaces.

The preinstalled GOM Inspect software takes meshes to the next level, supporting users to get 3D data easily and fast. GOM Scan 1 is available for different applications with three measuring volumes: 100mm, 200mm and 400mm fields of views.

Ready to print with intelligent mesh editing

GOM Scan 1 operates with GOM Inspect, the well-established standard in 3D metrology, and supports tasks such as 3D printing, 3D visualisation and reverse engineering. It captures high-quality data in a short amount of time, while the powerful mesh editing functions make it easy to reproduce parts, create precise 3D models or develop new products.

The software functions enable users, for example, to smooth, thin and refine polygon meshes, fill holes or extract curvature lines, achieving very accurate meshes that can be saved in many common formats.

The smart polygonisation function creates meshes with the greatest detail while keeping the mesh size easy to handle.

A precise fringe projection scanner with true benefits

GOM Scan 1 is an optical 3D fringe projection scanner with Blue Light Technology. It captures the complete surface of components with narrowband blue light – recorded by two cameras that work based on GOM’s stereo camera principle. The powerful light source enables short measuring times and filters out interfering ambient light during image acquisition.

Thanks to the stereo camera principle, the sensor recognises changing ambient conditions during operation and can compensate for these changes. To ensure the quality of the measuring data, the software of the sensor continuously monitors the calibration status, the transformation accuracy, environmental changes and part movements.

A system to support the entire workflow

GOM Scan 1 with GOM Inspect delivers accurate and comprehensive measurement results making 3D part inspection effortless. Users can easily import and align CAD and mesh files with the software, create surface comparisons or dimensional inspections and generate reports.

GOM Scan 1 will be available worldwide through both the GOM global metrology network and the #HandsOnMetrology platform, a joint portfolio of 3D scanning solutions by GOM and ZEISS.

Visit www.gom.com/goto/3fxg for more information.
